Lithium Batteries / Battery Assemblies

Over the years BKG has developed into a distributor specifying in lithium batteries as well as battery and rechargeable battery packs.

Product portfolio

  • 3.6V Lithium Batteries (Li-SOCl2), Round- and Coincells
  • 3.0V Lithium Batteries (Li-MnO2), Round- and Coincells
  • 9.0V Lithium Batteries (9V-Block)
  • 3.7V Lithium-Polymer-Batteries (Li-Po), secundary batteries
  • 3.2V Lithium Iron Phosphate Batteries (LiFePO4), secundary batteries
  • 3.6V & 3.7V Lithium-Ion-Batteries (Li-Ion), Round- and Coincells, secundary batteries
  • 1.2V Nickel-Metallhydrid-Batteries (Ni-MH), Round- and Coincells, secundary batteries

Including assembly if required:

  • Terminal lug and pins, axial and radial wires
  • Assembly with wires and connectors
  • Battery packs and rechargeable battery packs
  • Combination with capacitors and other electrical components

Thanks to our direct cooperation with several battery producers, hence bulk discounts, we are able to offer highly competitive prices to all our customers.

Furthermore, we offer the assembly of lithium polymer battery packs acc. to your specifications. There are nearly no limits, only your existing space limits the range of possibilities.

We are glad to provide you an offer acc. to your needs and requirements, including protection circuit, BMS, cable assembly and the necessary UN38.3 certification as well as other UL certificates upon request.

Do you have questions about our products?
Please, contact me today.

Product Overview

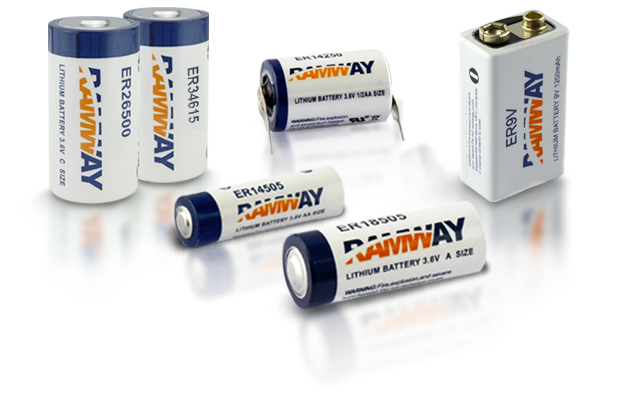

Tabs

Ramway 3,6V

LiSOCL2

Key Features

  • Long storage lifetime
  • Wide range of operating temperature
  • Offer stable operating voltage and loading voltage platform
  • Can offer small, medium and high pulse discharge current. Available series like bobbin type, spiral type and battery packs
  • Adopt stainless steel material, laser and hermetic glass-to-metal welding sealed which keep our battery have a unique performance in wet environment
  • Long using lifetime, it can be used above 5 years. In some special application, it can be used for more than 10 years (Depends on different working request)
  • High energy density, could achieve more than 650Wh/Kg. It is about 3-10 times of other series lithium battery
  • Mostly UL, SGS, CE, and UN38.3 recognized
Bobbin Type / Energy Type
Design Type Datenblatt Dimensions
(mm) max.
Voltage
(V)
Capacitance
(mAh)
Max. Discharge Current
(mA) konstant
Max. Discharge Current
(mA) Puls
Weight
(g)
1/2AA ER14250 Download 14.5 × 25.4 3,6V 1200 25 11
A ER18505 Download 18.5 × 50.5 3,6V 4000 100 32
DD ER341245 Download 34.0 × 124.5 3,6V 35000 400 220
AA ER14505 Download 14.5 × 50.5 3,6V 2700 50 19
2/3AA ER14335 Download 14.5 × 33.5 3,6V 1650 40 13
D ER34615 Download 34.0 × 61.5 3,6V 19000 230 107
2/3A ER17335 Download 17.0 × 33.5 3,6V 2200 100 19
C ER26500 Download 26.2 × 50.0 3,6V 9000 150 55
CC ER261020 Download 26.2 × 102.00 3,6V 17000 200 100
Spiral Type / High Power Type
Design Type Datenblatt Dimensions
(mm) max.
Voltage
(V)
Capacitance
(mAh)
Max. Discharge Current
(mA) konstant
Max. Discharge Current
(mA) Puls
Weight
(g)
D ER34615M Download 34.0 × 61.5 3,6V 14500 2000 110
2/3A ER17335M Download 17..0 × 33.5 3,6V 1900 400 19
C ER26500M Download 26.2 × 50.0 3,6V 6500 1500 55
A ER18505M Download 18.5 × 50.5 3,6V 3500 1000 32
1/2AA ER14250M Download 14.5 × 25.5 3,6V 800 100 11
AA ER14505M Download 14.5 × 50.5 3,6V 2200 400 19
2/3AA ER14335M on Request 14.5 × 33.5 3,6V 1300 200 15

Tabs

Ramway 3,0V

Li-MnO2

Key Features

  • Long storage lifetime
  • Wide range of operating temperature
  • Offer stable operating voltage and loading voltage platform
  • Can offer small, medium and high pulse discharge current. Available series like bobbin type, spiral type and battery packs
  • Adopt stainless steel material, laser and hermetic glass-to-metal welding sealed which keep our battery have a unique performance in wet environment
  • Long using lifetime, it can be used above 5 years. In some special application, it can be used for more than 10 years (Depends on different working request)
  • High energy density, could achieve more than 650Wh/Kg. It is about 3-10 times of other series lithium battery
  • Mostly UL, SGS, CE, and UN38.3 recognized
Design Type Datenblatt Dimensions
(mm) max.
Voltage
(V)
Capacitance
(mAh)
Max. Discharge Current
(mA) konstant
Max. Discharge Current
(mA) Puls
Weight
(g)
C CR26500 Download 26.2X50.5 3,0V 5400 2000 62
A CR17505 Download 17.0X50.5 3,0V 2300 1500 30
CR2 Download 15.5X27.0 3,0V 850 1000 13
2/3A CR123A Download 17.0X34.5 3,0V 1500 1500 20
CR-P2 Download 36X19.5X35 6,0V 1500 1500 42
CR17450 Download 17.0X45.5 3,0V 2000 1500 26
1/2AA CR14250 Download 14.5X25.4 3,0V 600 500 11
AA CR14505 Download 14.5X50.5 3,0V 1400 1500 21
D CR34615 Download 34.0X61.5 3,0V 12000 2000 125
2/3AA CR14335 on Request 14.5X33.5 3,0V 800 1000 14
A CR18505 Download 18.5X50.5 3,0V 2500 2000 35

Tabs

EEMB 3,6V

LiSOCL2

Key Features

  • High operating voltage, stable during most of the application lifetime
  • Applicable in a wide range of temperatures (-55°C to +85°C)
  • Superior shelf life and reliability: Over 10 years of shelf life if stored at room temperature
  • Energy type consists of a bobbin structure that is best suited for a low discharge current. It may require activation before the medium currents can be delivered
  • Self-discharge rate of less than 1% per year

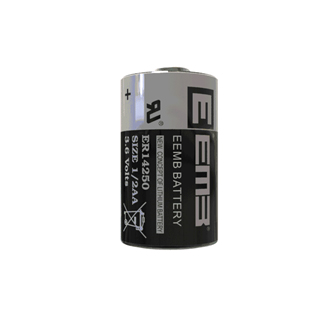

Bobbin Type / Energy Type
Design Type Datenblatt Dimensions
(mm) max.
Voltage
(V)
Capacitance
(mAh)
Max. Discharge Current
(mA) konstant
Max. Discharge Current
(mA) Puls
Weight
(g)
ER10250 Download 10.4 × 25.0 3,6V 400 5 10 4.0
AAA ER10450 Download 10.6 × 45.0 3,6V 800 25 60 9.0
ER13150 Download 13.5 × 15.7 3,6V 450 10 20 7.0
ER13170 Download 13.5 × 17.8 3,6V 500 10 20 7.0
1/2AA ER14250 Download 14.5 × 25.8 3,6V 1200 40 80 10.0
2/3AA ER14335 Download 14.5  x33.0 3,6V 1650 50 100 13.0
AA ER14505 Download 14.5 × 49.5 3,6V 2400 100 200 20.0
2/3A ER17335 Download 17.0 × 33.5 3,6V 2100 100 200 20.0
A ER17505 Download 17.0 × 50.5 3,6V 3400 120 200 24.0
ER18505 Download 18.7 × 50.5 3,6V 4000 120 200 30.0
C ER20505  Download 20.0 × 50.5 3,6V 4400 120 250 35.0
C ER26500 Download 26.2 × 50.5 3,6V 9000 200 400 53.0
D ER34615 Download 34.0 × 61.5 3,6V 19000 230 500 115.0
DD ER341245 Download 32.9 × 124.5 3,6V 35000 420 500 200.0

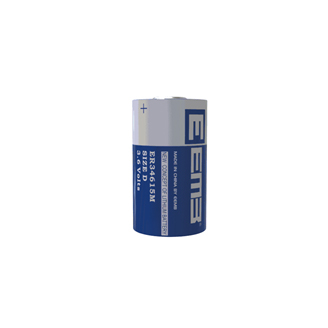

Spiral Type / High Power Type
Design Type Datenblatt Dimensions
(mm) max.
Voltage
(V)
Capacitance
(mAh)
Max. Discharge Current
(mA) konstant
Max. Discharge Current
(mA) Puls
Weight
(g)
1/2AA ER14250M Download 14.5x25.2 3,6V 750 120 250 11.0
2/3AA ER14335M Download 14.5x33.5 3,6V 1200 300 500 13.0
AA ER14505M Download 14.5x50.5 3,6V 1800 500 1000 22.0
2/3A ER17335M Download 17.0x33.5 3,6V 1700 500 1000 21.0
ER18505M Download 18.8x50.5 3,6V 3200 1000 2000 30.0
ER20505M Download 20.2x50.5 3,6V 3600 1000 2000 35.0
C ER26500M Download 26.2x50.5 3,6V 6500 1000 2000 57.0
D ER34615M Download 34.2x61.5 3,6V 14000 2000 3000 118.0

Tabs

EEMB 3,0V

Li-MnO2

Key Features

  • High voltage of 3.0V per cell
  • Spiral electrode structure ensures high-rate current discharge
  • Low self-discharge rate and long shelf life
  • Applicable in a wide range of temperatures
    • Operational temperature ranges of:
    • Hermetically glass to metal sealed type: -40℃ to +85℃
  • Stable discharge characteristics
  • Superior leakage resistance

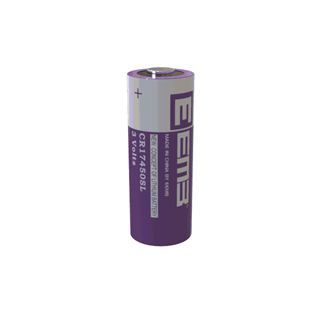

Bobbin Type / Energy Type
Design Type Datenblatt Dimensions
(mm) max.
Voltage
(V)
Capacitance
(mAh)
Max. Discharge Current
(mA) konstant
Max. Discharge Current
(mA) Puls
Weight
(g)
CR10450BL Download 10.0 × 45.0 3,0V 850 7 70 10.0
1/2AA CR14250BL Download 14.5 × 25.0 3,0V 900 7 70 11.0
2/3AA CR14335BL Download 14.5 × 33.5 3,0V 1100 8 80 16.0
AA CR14505BL  Download 14.5 × 50.5 3,0V 1800 10 100 22.0
2/3A CR17335BL Download 17.0 × 34.5 3,0V 1800 10 100 22.0
CR17450BL Download 17.0 × 45.0 3,0V 2400 15 150 28.0

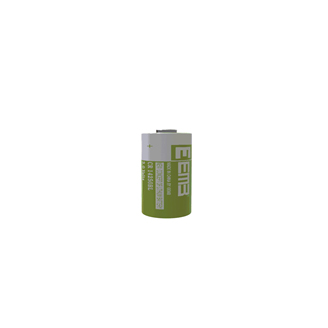

Spiral Type / High Power Type
Design Type Datenblatt Dimensions
(mm) max.
Voltage
(V)
Capacitance
(mAh)
Max. Discharge Current
(mA) konstant
Max. Discharge Current
(mA) Puls
Weight
(g)
1/2AA CR14250SL Download 14.5 × 25.0 3,0V 600 500 1000 10.0
2/3AA CR14335SL Download 14.5 × 33.5 3,0V 900 800 1500 14.0
AA CR14505SL Download 14.5 × 50.5 3,0V 1500 1000 2000 21.0
CR2SL Download 15.5 × 27.0 3,0V 800 800 1500 13.0
CR123ASL Download 17.0 × 34.5 3,0V 1500 1500 3000 20.0
2/3A CR17335SL Download 17.0 × 34.5 3,0V 1500 1500 3000 20.0
CR17450SL Download 17.0 × 45.0 3,0V 2200 1500 3000 26.0
A CR17505SL Download 17.0 × 50.5 3,0V 2500 1500 3000 30.0
CR18505SL Download 18.5 × 50.5 3,0V 2800 1500 3000 35.0
C CR26500SL Download 26.2 × 50.0 3,0V 5000 2000 3000 62.0
D CR34615SL Download 34.2 × 61.5 3,0V 11000 2000 3000 125.0
2CR5SL Download 34.0 × 17.0 × 45.0 6,0V 1500 1500 3000 43.0
CR-P2SL Download 35.8 × 19.5 × 34.8 6,0V 1500 1500 3000 42.0
1/3N CR1/3N Download 11.7 × 10.9 3,0V 170 60 140 3.0
2CR1/3N Download 11.9 × 22.0 6,0V 170 60 800 7.0

Tabs

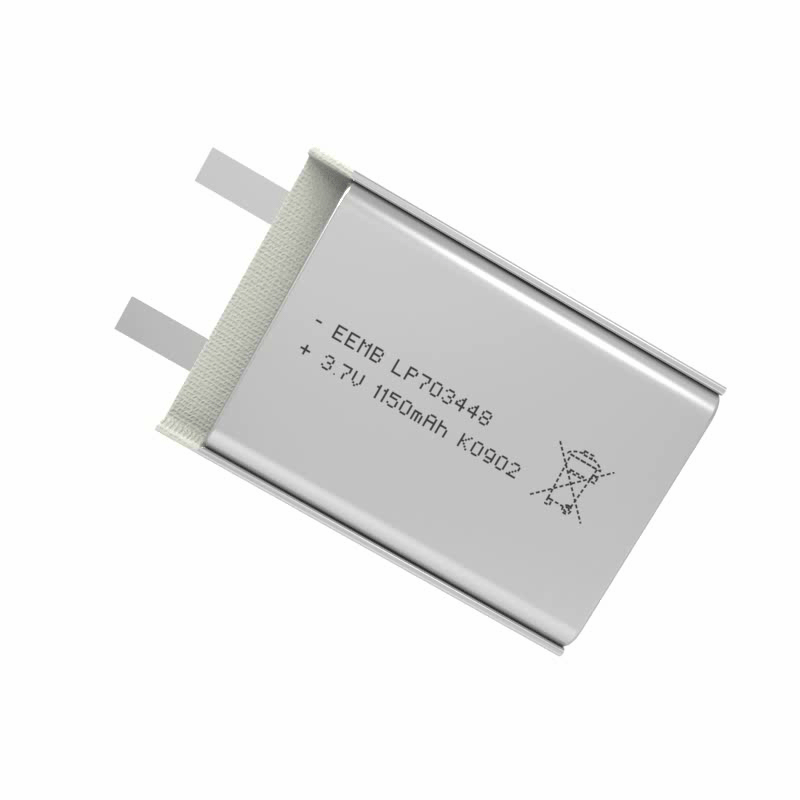

EEMB Li-Polymer

Standard

Key Features

  • High energy density and operating voltage of 3.7V
  • High discharge rate for more powerful devices
    • Lithium-ion polymer batteries are of outstanding discharge rate, sufficient to power a hard disk, video cameras and other such devices
  • Stable discharge under various environmental conditions, and temperatures, from –20℃ to +60℃
  • Superior storage characteristics
    • The self-discharge rate of Lithium-ion polymer battery is about 3% per month when stored at room temperature
  • Excellent cost performance and long cycle life
    • Superior recharging properties ensure a service life of up to 800 cycles under normal usage conditions
  • Environmentally friendly

Applications

  • Portable DVD players, Bluetooth devices, wireless devices, wearable electronic devices, PDA and digital cameras, security display stands for phones and tablets, camera anti-theft display stands, electric bikes, GPS, monitoring units, tracking units, notebook computers, e-books, telematics, real-timelocation tracking systems, tracking devices, sleep management equipment, blood oxygen tracking equipment, pulse monitors, Wi-Fi enabled smart home systems
Type Datenblatt Nominal Voltage (V) Typ. Nominal (mAh) Min. Nominal (mAh) Thickness / Dimension (mm) Width / Dimension (mm) Height / Dimension (mm) Weight (g) approx.
*LP451124 Download 3.7 65 55 4.8 11.5 26 1.3
LP531124 Download 3.7 95 90 5.6 11.5 26 1.9
LP551124 Download 3.7 85 80 5.5 11.0 24 2.0
LP201230 Download 3.7 70 60 3.5 12.5 31 0.8
LP301230 Download 3.7 70 60 3.5 12.5 31 1.4
#LP401230 Download 3.7 100 90 4.3 12.5 31 2.0
#LP501230 Download 3.7 140 130 5.3 12.5 31 2.8
*LP401429 Download 3.7 130 120 4.3 14.5 30 2.6
*LP501429 Download 3.7 155 130 5.3 14.5 30 3.1
LP501622-100mAh Download 3.7 100 95 5.3 16.5 23 2.0
LP501622-120mAh Download 3.7 120 100 5.3 16.5 23 2.4
*LP601622 Download 3.7 160 150 6.3 16.5 23 3.2
LP801622 Download 3.7 200 180 8.3 16.5 23 4.0
#LP301730 Download 3.7 100 90 3.3 17.5 31 2.0
#LP401730 Download 3.7 150 140 4.3 17.5 31 2.8
#LP601730 Download 3.7 260 240 6.3 17.5 31 5.2
LP351745 Download 3.7 200 180 3.8 17.5 46 4.0
#LP401745 Download 3.7 250 230 4.3 17.5 46 5.0
LP501745 Download 3.7 350 310 5.3 17.5 46 7.0
LP302024 Download 3.7 85 75 3.5 20.5 25 1.7
LP382024 Download 3.7 120 110 4.1 20.5 25 2.4
LP402024 Download 3.7 165 150 4.3 20.5 25 3.3
LP452024 Download 3.7 180 170 4.8 20.5 25 6.4
LP602024 Download 3.7 210 190 6.0±0.3 20.0±0.5 25±1.0 4.5
LP242030 Download 3.7 100 90 3.5 20.5 31 2.0
LP302030 Download 3.7 130 110 3.5 20.5 31 2.6
LP352030 Download 3.7 160 140 3.8 20.5 31 3.2
LP382030 Download 3.7 190 180 4.1 20.5 31 3.8
LP402030 Download 3.7 190 180 4.3 20.5 31 3.8
#LP452030 Download 3.7 230 210 4.8 20.5 31 4.6
#LP502030 Download 3.7 250 230 5.3 20.5 31 5.0
LP552030 Download 3.7 300 250 5.8 20.5 31 6.0
LP562030 Download 3.7 280 260 5.9 20.5 31 5.6
LP582030 Download 3.7 290 270 6.1 20.5 31 5.8
LP602030 Download 3.7 300 280 6.3 20.5 31 6.0
LP652030 Download 3.7 320 300 6.7 20.5 31 6.4
LP702030 Download 3.7 350 320 7.3 20.5 31 7.0
*LP402035 Download 3.7 230 210 4.3 20.5 36 4.6
#LP222036 Download 3.7 95 90 2.5 20.5 37 1.9
LP352036 Download 3.7 180 170 3.5 20.0 36 3.6
LP382036 Download 3.7 180 170 3.8 20.0 36 3.6
#LP402036 Download 3.7 220 200 4.3 20.5 37 4.4
LP452036 Download 3.7 250 230 4.8 20.5 37 5.0
#LP502036 Download 3.7 310 280 5.3 20.5 37 6.2
LP532036 Download 3.7 340 310 5.6 20.5 37 6.8
#LP552036 Download 3.7 360 330 5.8 20.5 37 7.2
LP632036 Download 3.7 450 420 6.6 20.5 37 9.0
LP802036 Download 3.7 500 470 8.3 20.5 37 10.0
LP102040 Download 3.7 800 750 10.3 20.5 41 16.0
LP402040 Download 3.7 270 250 4.3 20.5 41 5.4
LP502040 Download 3.7 340 300 5.3 20.5 41 6.8
LP602040 Download 3.7 450 420 6.3 20.5 41 9.0
#LP852040 Download 3.7 620 580 8.8 20.5 41 12.4
*LP202235 Download 3.7 110 90 2.3 22.5 36 2.2
*LP452235 Download 3.7 280 250 4.8 22.5 36 5.6
LP402245 Download 3.7 330 300 4.3 22.5 46 7.0
LP582245 Download 3.7 560 510 6.1 22.5 46 11.2
#LP822245 Download 3.7 750 700 8.5 22.5 46 15.0
LP952245 Download 3.7 900 850 9.8 22.5 46 18.0
*LP602248 Download 3.7 600 550 6.3 22.5 49 12.0
*LP642431 Download 3.7 420 380 6.7 24.5 32 8.4
#LP652438 Download 3.7 540 500 6.8 24.5 39 10.8
#LP752438 Download 3.7 600 550 7.8 24.5 39 12.0
*LP552530 Download 3.7 380 360 5.8 25.5 31 8.0
*LP402535 Download 3.7 320 300 4.3 25.5 36 6.0
*LP542730 Download 3.7 380 350 5.7 27.5 31 7.6
*LP602730 Download 3.7 420 390 6.3 27.5 31 8.4
*LP652730 Download 3.7 450 420 6.8 27.5 31 9.0
LP372945 Download 3.7 420 390 4.0 29.5 46 8.4
LP422945 Download 3.7 500 450 4.5 29.5 46 10.0
LP502945 Download 3.7 650 600 5.3 29.5 46 13.0
LP602945 Download 3.7 800 750 6.3 29.5 46 16.0
LP102945 Download 3.7 1300 1200 10.3 29.5 46 26.0
LP112945 Download 3.7 1400 1300 11.3 29.5 46 28.0
LP403026 Download 3.7 260 220 4.3 30.5 27 5.2
LP453026 Download 3.7 280 250 4.8 30.5 27 5.6
#LP603026 Download 3.7 420 400 6.3 30.5 27 8.4
LP803026 Download 3.7 520 470 8.3 30.5 27 10.4
LP503030 Download 3.7 350 300 5.3 30.5 32 7.0
LP603030 Download 3.7 480 460 6.3 31.5 31 9.6
*LP403040 Download 3.7 460 420 4.3 30.5 41 9.2
LP503042 Download 3.7 600 550 5.3 30.5 43 12.0
#LP653042 Download 3.7 820 770 6.8 30.5 43 16.4
LP753042 Download 3.7 1000 900 7.8 30.5 43 20.0
LP833042 Download 3.7 1000 950 8.6 30.5 43 20.0
LP403048 Download 3.7 570 520 4.3 30.5 49 11.4
LP423048 Download 3.7 430 390 4.5 30.5 49 8.6
#LP453048 Download 3.7 600 550 4.8 30.5 49 12.0
LP483048 Download 3.7 670 620 4.8 30.0 48 13.5
LP503048 Download 3.7 750 700 5.3 30.5 49 15.0
LP523048 Download 3.7 750 700 5.5 30.5 49 15.0
#LP603048 Download 3.7 900 800 6.3 30.5 49 18.0
LP623048 Download 3.7 920 870 6.2 30.0 48 18.5
#LP703048 Download 3.7 800 750 7.3 30.5 49 16.0
LP753048 Download 3.7 1100 1000 7.8 30.5 49 22.0
#LP803048 Download 3.7 1150 1050 8.0 30.0 48 23.0
#LP883048 Download 3.7 1200 1100 8.3 30.5 49 24.0
LP503090 Download 3.7 1300 1200 5.3 30.0 91 26.0
LP523090 Download 3.7 1450 1350 5.0 30.0 90 28.0
#LP803090 Download 3.7 2300 2200 8.3 30.5 91 46.0
#LP883090 Download 3.7 2700 2600 9.1 30.5 91 54.0
*LP553250 Download 3.7 950 900 5.8 32.5 51 19.0
*LP853250 Download 3.7 1400 1300 8.8 32.5 51 28.0
*LP453436 Download 3.7 550 500 4.8 34.5 37 11.0
*LP553436 Download 3.7 630 580 5.8 34.5 37 12.6
*LP603440 Download 3.7 800 750 6.3 34.5 41 16.0
*LP683440 Download 3.7 900 850 7.1 34.5 41 18.0
*LP513446 Download 3.7 900 850 5.4 34.5 47 18.0
#LP403448 Download 3.7 620 580 4.3 34.5 49 12.4
LP423448 Download 3.7 670 620 4.5 34.5 49 13.4
#LP503448-880mAh Download 3.7 880 830 5.3 34.5 49 17.6
#LP503448TB-850mAh Download 3.7 880 830 5.3 34.5 49 17.6
LP523448 Download 3.7 900 850 5.5 34.5 49 18.0
#LP603448 Download 3.7 1000 950 6.3 34.5 49 20.0
LP663448 Download 3.7 1050 950 6.9 34.5 49 21.0
LP703448 Download 3.7 1200 1100 7.3 34.5 49 24.0
LP753448 Download 3.7 1350 1250 7.8 34.5 49 27.0
#LP803448 Download 3.7 1350 1300 8.3 34.5 49 27.0
LP953448 Download 3.7 1500 1400 9.5 34.0 48 30.0
LP103448 Download 3.7 1800 1700 10.3 34.5 49 36.0
*LP603449 Download 3.7 1100 1000 6.3 34.5 50 22.0
#LP293450 Download 3.7 450 400 3.5 34.5 51 9.0
#LP323450 Download 3.7 550 500 3.5 34.5 51 11.0
#LP383450 Download 3.7 720 670 4.1 34.5 51 14.4
LP423450 Download 3.7 660 610 4.2 34.0 50 13.5
#LP483450 Download 3.7 800 750 5.1 34.5 51 16.0
#LP503450 Download 3.7 1000 900 5.3 34.5 51 20.0
#LP533450 Download 3.7 950 900 5.6 34.5 51 19.0
#LP603450-1000mAh Download 3.7 1000 950 6.3 34.5 51 20.0
#LP603450-900mAh Download 3.7 900 850 6.3 34.5 51 18.0
#LP703450 Download 3.7 1250 1150 7.3 34.5 51 25.0
#LP803450 Download 3.7 1400 1300 8.3 34.5 51 28.0
LP903450 Download 3.7 1500 1450 9.3 34.5 51 31.0
#LP953450 Download 3.7 1800 1700 9.8 34.5 51 36.0
#LP963450 Download 3.7 1800 1700 9.6 34.0 50 36.0
LP103450 Download 3.7 1850 1750 10.3 34.5 51 37.0
#LP243454-350mAh Download 3.7 350 330 3.5 34.5 55 7.0
#LP243454-330mAh Download 3.7 330 290 3.5 34.5 55 6.6
LP343454 Download 3.7 580 550 3.7 34.5 55 11.6
LP363454 Download 3.7 640 600 3.6 34.0 54 13.0
#LP383454 Download 3.7 750 700 4.1 34.5 55 15.0
LP423454 Download 3.7 770 720 4.2 34.0 54 15.5
LP523454 Download 3.7 1000 950 5.5 34.5 55 20.0
LP553454-1000mAh Download 3.7 1050 1000 5.5±0.3 34.5 54±1.0 19.5±2.0
LP553454-1050mAh Download 3.7 1050 950 5.8 34.5 56 21.0
LP623454 Download 3.7 1200 1100 6.2±0.3 34.5 54±1.0 22.5±2.0
#LP103454 Download 3.7 2000 1900 10.3 34.5 55 40.0
*LP603455 Download 3.7 1200 1100 6.0 34.0 55 24.0
*LP803466 Download 3.7 1900 1800 8.3 34.5 67 38.0
*LP703480 Download 3.7 2100 2000 7.3 34.5 81 42.0
LP293560 Download 3.7 550 500 3.5 35.5 61 11.0
LP383560 Download 3.7 850 800 4.1 35.5 61 17.0
LP523560 Download 3.7 1150 1050 5.5 35.5 61 23.0
#LP603560 Download 3.7 1300 1200 6.3 35.5 61 26.0
LP853560 Download 3.7 1800 1700 8.8 35.5 61 36.0
LP243759 Download 3.7 420 390 6.0 37.5 60 8.4
LP483759 Download 3.7 1100 1000 5.1 37.5 60 22.0
#LP503759 Download 3.7 1200 1100 5.3 37.5 60 24.0
LP543759 Download 3.7 1300 1200 5.7 37.5 60 26.0
#LP583759 Download 3.7 1350 1250 6.1 37.5 60 27.0
LP653759 Download 3.7 1550 1450 6.8 37.5 60 31.0
LP903759 Download 3.7 2200 2100 9.3 37.5 60 44.0
*LP503870 Download 3.7 1500 1400 5.3 38.5 71 30.0
*LP804050 Download 3.7 1700 1600 8.3 40.5 51 34.0
LP574152 Download 3.7 1300 1200 6.0 41.5 53 26.0
LP604152 Download 3.7 1350 1250 6.3 41.5 53 27.0
LP704152 Download 3.7 1500 1450 7.3 41.5 53 30.0
LP354261 Download 3.7 800 750 3.8 42.5 62 16.0
#LP404261 Download 3.7 1000 950 4.3 42.5 62 20.0
LP524261 Download 3.7 1500 1400 5.5 42.5 62 30.0
LP564261 Download 3.7 1500 1400 5.9 42.5 62 30.0
LP604261 Download 3.7 1500 1400 6.3 42.5 62 30.0
#LP754261 Download 3.7 2000 1900 7.8 42.5 62 40.0
LP804261 Download 3.7 2100 2000 8.3 42.5 62 42.0
*LP504368 Download 3.7 1600 1500 5.3 43.5 69 32.0
*LP804368 Download 3.7 2500 2400 8.3 43.5 69 50.0
LP274374 Download 3.7 7500 700 23.5 43.5 75 15.0
LP354374 Download 3.7 1100 1000 3.8 43.5 75 22.0
LP404374 Download 3.7 1350 1250 4.3 43.5 75 27.0
LP504374 Download 3.7 1500 1400 5.3 43.5 75 30.0
LP604374 Download 3.7 2200 2100 6.3 43.5 75 44.0
#LP704374 Download 3.7 2500 2400 7.3 43.5 75 50.0
LP854374 Download 3.7 3000 2800 8.8 43.5 75 60.0
*LP7545135 Download 3.7 4500 4300 7.8 45.5 136 90.0
*LP8545135 Download 3.7 5600 5400 8.8 45.5 136 112.0
LP384765 Download 3.7 1150 1050 4.1 47.5 66 23.0
LP504765 Download 3.7 1600 1500 5.3 47.5 66 32.0
LP544765 Download 3.7 1600 1500 5.4 47.0 65 32.0
LP604765 Download 3.7 1900 1800 6.3 47.5 66 38.0
LP654765 Download 3.7 2200 2100 6.8 47.5 66 44.0
#LP704765 Download 3.7 2400 2300 7.3 47.5 66 48.0
#LP804765 Download 3.7 2600 2500 8.3 47.5 66 52.0
LP844765 Download 3.7 2900 2800 8.4 47.0 65 58.0
#LP884765 Download 3.7 3000 2800 9.1 47.5 66 60.0
LP455065 Download 3.7 1500 1400 4.8 50.5 66 30.0
LP505065 Download 3.7 1800 1700 5.3 50.5 66 36.0
LP805065 Download 3.7 2800 2700 8.3 50.5 66 56.0
LP325085 Download 3.7 1200 1100 3.5 50.5 86 24.0
#LP385085 Download 3.7 1600 1500 4.1 50.5 86 32.0
LP425085 Download 3.7 1850 1750 4.5 50.5 86 37.0
LP455085 Download 3.7 2200 2100 4.8 50.5 86 60.0
#LP505085 Download 3.7 2300 2200 5.3 50.5 86 46.0
LP535085 Download 3.7 2500 2400 5.6 50.5 86 50.0
#LP705085 Download 3.7 3500 3300 7.3 50.5 86 70.0
LP755085 Download 3.7 3300 3100 7.8 50.5 86 66.0
LP855085 Download 3.7 3900 3700 8.8 50.5 86 78.0
#LP9051109 Download 3.7 5500 5300 9.3 51.5 110 110.0
#LP9551119-6800mAh Download 3.7 6800 6500 9.8 51.5 120 136.0
#LP9551119-6500mAh Download 3.7 6500 6200 9.8 51.5 120 130.0
LP455255 Download 3.7 1250 1150 4.8 51.5 56 25.0
LP525255 Download 3.7 1500 1400 5.5 52.5 56 30.0
#LP555255 Download 3.7 1650 1550 5.8 52.5 56 33.0
LP605255 Download 3.7 1700 1600 6.3 52.5 56 34.0
LP475575 Download 3.7 2000 1900 5.0 55.0 75 40.0
LP525575 Download 3.7 2300 2200 5.2 55.0 75 46.0
LP605575 Download 3.7 2500 2400 6.3 55.5 76 50.0
#LP305590 Download 3.7 1450 1350 3.7 55.5 91 29.0
LP365590 Download 3.7 1700 1600 3.9 55.5 91 34.0
#LP385590 Download 3.7 1900 1800 4.1 55.5 91 38.0
LP405590 Download 3.7 2100 2000 4.3 55.5 91 42.0
LP455590 Download 3.7 2400 2300 4.8 55.5 91 48.0
#LP505590 Download 3.7 2800 2700 5.3 55.5 91 56.0
#LP545590 Download 3.7 2900 2700 5.7 55.5 91 58.0
#LP605590 Download 3.7 3400 3200 6.3 55.5 91 68.0
*LP675776 Download 3.7 3000 3100 7.0 57.5 77 66.0
*LP5058110 Download 3.7 3400 3200 5.3 58.5 111 68.0
LP326167 Download 3.7 3400 3200 5.3 61.5 68 68.0
LP456167 Download 3.7 2000 1900 4.8 61.5 68 40.0
LP556167 Download 3.7 2300 2200 5.8 61.5 68 46.0
LP956167 Download 3.7 4000 3800 9.8 61.5 68 80.0
*LP656194 Download 3.7 4000 3800 6.8 61.5 95 80.0
LP50100100 Download 3.7 4800 4600 5.3 100.5 101 96.0
LP55100100LC Download 3.7 5600 5300 5.8 100.5 101 112.0
#LP61100100 Download 3.7 6800 6400 6.4 100.5 101 136.0
#LP38103122 Download 3.7 5200 4900 4.1 103.5 123 104.0
#LP70103122 Download 3.7 8700 8200 7.3 103.5 123 174.0

UL certified battery ( e.g. *LP451124)
# UL certified battery has ready mold. ( e.g: #LP403040)
without any symbol: battery has ready mold. (e.g. LP382030)

Tabs

Ultralife 3,6V

LiSOCL2

Key Features

  • High and stable operating voltage (Bobbin Type)
  • High and flat operating voltage (Spiral Type)
  • Higher power and higher energy for the whole battery life
  • Superior drain capability (Bobbin Type)
  • High drain capability (Spiral Type)
  • Higher power applications
  • Low self-discharge rate (less than 1% after 1 year of storage at +20°C)
  • Battery life higher than 10 years, depending on the application
  • Hermetic glass-to-metal sealing
  • Avoid leakage, key for a higher than 10 year battery life
  • Non-flammable electrolyte
  • Safer operation in case of abuse
  • PTC device (Spiral Type)
  • Safe operation in the event of a short circuit (Spiral Type)

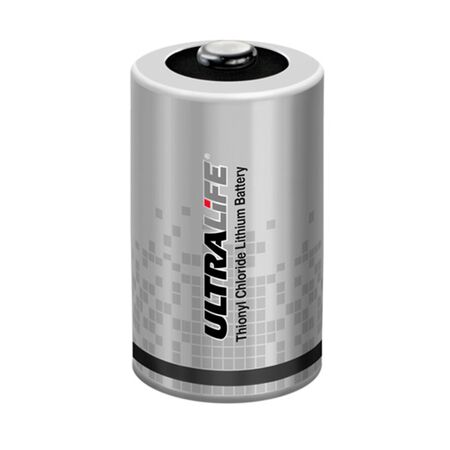

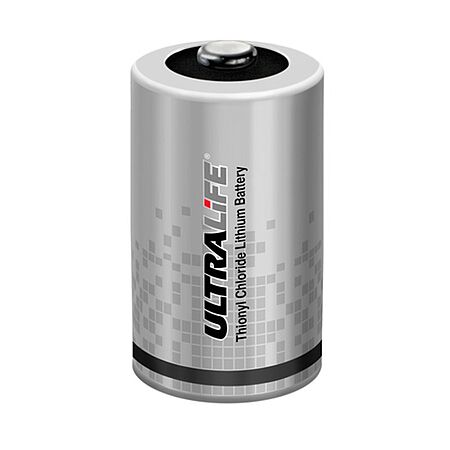

Bobbin Type / Energy Type
Design Type Datenblatt Dimensions
(mm) max.
Voltage
(V)
Capacitance
(mAh)
Max. Discharge Current
(mA) konstant
Max. Discharge Current
(mA) Puls
Weight
(g)
1/2AA ER14250 Download 14.5 × 25.0 3.6 1200 50 100 10
AA ER14505 Download 14.5 × 50.5 3.6 2400 100 200 19
A ER18505 Download 18.5 × 51.0 3.6 4000 100 200 32
C ER26500 Download 26.2 × 50.0 3.6 9000 200 400 55
D ER34615 Download 34.2 × 61.5 3.6 19000 200 400 106

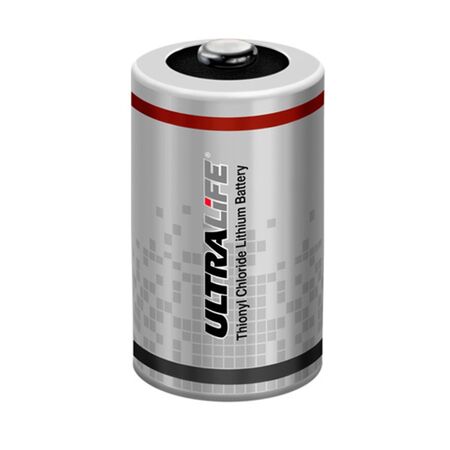

Spiral Type / High Power Type
Design Type Datenblatt Dimensions
(mm) max.
Voltage
(V)
Capacitance
(mAh)
Max. Discharge Current
(mA) konstant
Max. Discharge Current
(mA) Puls
Weight
(g)
AA ER14505M Download 14.5 × 50.5 3.6 2000 400 800 19
A ER18505M Download 18.5 × 51.0 3.6 3000 600 1000 32
C ER26500M Download 26.2 × 50.0 3.6 6500 1000 1500 55
D ER34615M Download 34.2 × 61.5 3.6 14500 2000 3000 107

Tabs

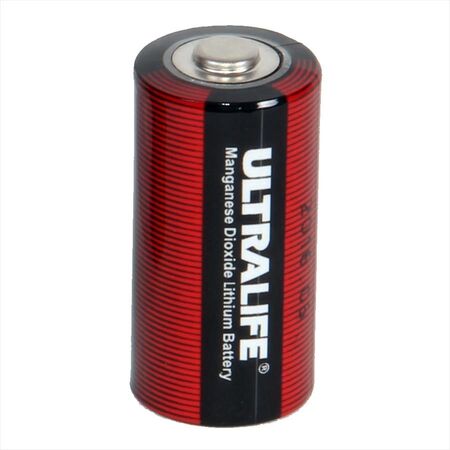

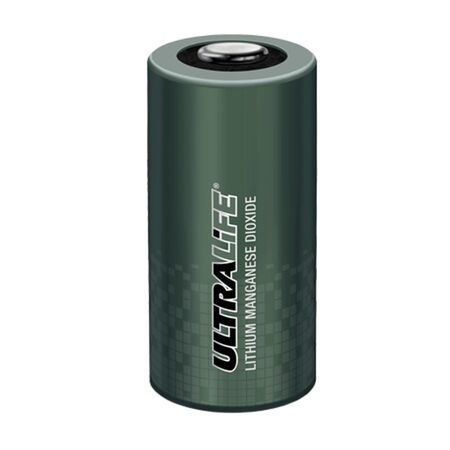

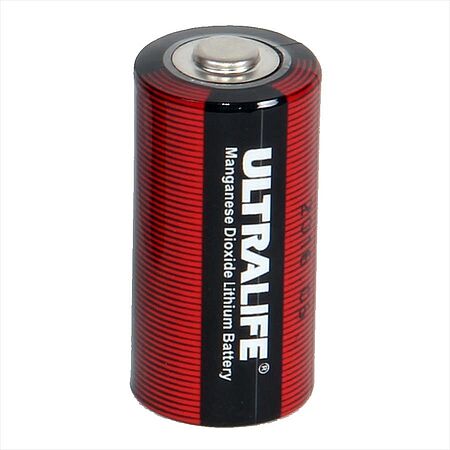

Ultralife 3,0V

Li-MnO2

Key Features

  • High and stable operating voltage
  • Higher power and higher energy for the whole battery life
  • Superior drain capability
  • Higher power applications
  • Low self-discharge rate (less than 2% after 1 year of storage at +20°C)
  • Battery life of 10 years, depending on the application
  • Hermetic glass-to-metal sealing
  • Avoid leakage, key for a higher than 10 year battery life
Design Type Dimensions
(mm) max.
Voltage
(V)
Capacitance
(mAh)
Max. Discharge Current
(mA) konstant
Max. Discharge Current
(mA) Puls
Weight
(g)
2/3A CR123A Download 17.0 × 34.5 3.0 1500 1000 2000 16.0
2/3A UB123A  Download 17.0 × 34.5 3.0 1800 1500 2500 17.0
2/3A XR123A on Request 17.0 × 34.5 3.0 2100 1500 2500 16.0
CR2 CR2 Download 15.0 × 27.0 3.0 750 500 1000 11.0

Tabs

Vitzrocell 3,6V

LiSOCL2

Key Features

  • High and stable operating voltage
  • Low self-discharge rate
    • less than 1% after 1 year of storage at + 20°C (Bobbin type)
    • less than 2% after 1 year of storage at + 20°C (Spiral Type)
  • With safety vent (Spiral type)
  • Non-flammable inorganic electrolyte
  • Hermetic glass-to-metal sealing
  • UL recognized (file number MH18384)
  • RoHS Compliance
  • Non-restricted for transport
  • UL recognized (file number MH18384) (Bobbin type)
Bobbin Type / Energy Type
Design Type Datenblatt Dimensions
(mm) max.
Voltage
(V)
Capacitance
(mAh)
Discharge Current
(mA)
Max. Discharge Current
(mA) konstant
Max. Discharge Current
(mA) Puls
Weight
(g)
1/2AA SB-AA02 on Request 14.4 × 25.2 3.6 1200 1 20 50 9.0
1/2AA SB-AA02(P) on Request 14.4 × 25.2 3.6 1200 1 20 80 9.0
AA SB-AA11 on Request 14.4 × 50.6 3.6 2500 2 60 100 16.0
AA SB-AA11(P) on Request 14.4 × 50.6 3.6 2500 2 60 150 16.0
A SB-A01 on Request 16.9 × 50.8 3.6 3650 3 70 160 24.0
C SB-C02 on Request 25.9 × 50.0 3.6 8500 4 80 180 51.0
D SB-D02 on Request 33.8 × 59.9 3.6 19000 6 100 250 100.0
Spiral Type / High Power Type
Design Type Datenblatt Dimensions
(mm) max.
Voltage
(V)
Capacitance
(mAh)
Discharge Current
(mA)
Max. Discharge Current
(mA) konstant
Max. Discharge Current
(mA) Puls
Weight
(g)
1/2AA SW-AA01 on Request 14.4 × 25.2 3.6 800 1 100 300 9.0
AA SW-AA11 on Request 14.4 × 50.6 3.6 2000 3 250 800 17.0
A SW-A01 on Request 16.9 × 50.8 3.6 3000 5 600 1500 30.0
C SW-C01 on Request 25.9 × 50.0 3.6 6000 15 900 1800 52.0
D SW-D02 on Request 33.8 × 59.9 3.6 14000 20 1800 3000 102.0

Tabs

Vitzrocell 3,0V

Li-MnO2

Key Features

  • High and stable operating voltage
  • Low self-discharge rate (less than 2% after 1 year of storage at + 20°C)
  • UL recognized (file number MH18384)
  • RoHS Compliance
  • Non-restricted for transport
Design Type Datenblatt Dimensions
(mm) max.
Voltage
(V)
Capacitance
(mAh)
Discharge Current
(mA)
Max. Discharge Current
(mA) konstant
Max. Discharge Current
(mA) Puls
Weight
(g)
2/3A CR123A on Request 17.1 × 34.5 3.0 1500 14 1000 3500 16.0
CR2 CR2 on Request 15.6 × 27.3 3.0 850 10 800 2500 11.5
CR17450 on Request 16.8 × 45.0 3.0 2400 1000 3000 23.0
