Steckverbinder
CviLux
Sie suchen nach einer Alternative zu Tyco, Molex, Iriso, JST, uvm.? Diese soll die gleichen Qualitätsstandards und kürzere Lieferzeiten haben? Dazu noch preislich attraktiv? Dann sind Sie bei CviLux genau richtig!
Das taiwanesische Unternehmen, mit diversen Fertigungsstätten in Fernost, bietet ein breites Spektrum an Steckverbinder und Kabel an. Überzeugen Sie sich selbst.

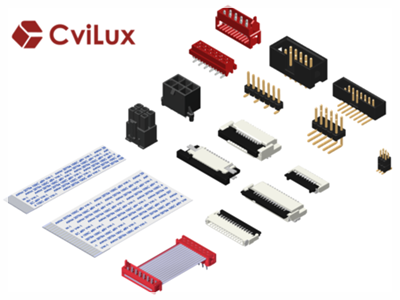

Das Hauptlieferprogramm von CviLux ist:
- FFC-/ FPC-Steckverbinder
- FFC-Folienkabel
- IDC Schneidklemmverbinder inkl. Flachbandkabel
- Stift- und Buchsenleisten
- RJ45-, USB- und Powersteckverbinder
- Wire-to-Board Steckerverbinder
CviLux ist u. a. nach ISO9001, ISO14001 und IATF16949 zertifiziert.
Sie haben Fragen zu unseren Produkten? Kontaktieren Sie uns heute noch!
CviLux Steckverbindertypen
Tabs
FFC/ FPC Steckverbinder und FFC-Folienkabel
Tabs
IDC Schneidklemmverbinder und Flachbandkabel
Tabs
Stift- und Buchsenleisten
Tabs
RJ45-, USB- und Powersteckverbinder
Tabs
Wire-to-Board , Board-to-Board Steckverbinder
CviLux Steckverbinder Übersicht
Tabs
Wire To Board
| Pitch (mm) | Pitch (inch) | Series | Pins | Latch | SMD / THT | Male / Female | Rows | Remark |  |
|---|---|---|---|---|---|---|---|---|---|
| 0.60 | 0.024 | CI20 | 6, 8, 10 | without | SMT | Male / Female | 1 | Wire to Board Housing & SMT Headers | Download |
| 0.80 | 0.031 | CI18 | 2-15 | without | SMT | Male / Female | 1 | Wire to Board Housing & SMT Headers | Download |
| 1.00 | 0.039 | CI11 | 02-15, 18, 20, 26 | without | SMT | Male / Female | 1 | Single Row Wire to Board Housing & Terminal | Download |
| 1.00 | 0.039 | CI11 | 10, 12, 14, 16, 18, 20, 30, 40, 50 | without | SMT | Male / Female | 2 | Double Row Wire to Board Housing & Terminal | Download |
| 1.00 | 0.039 | CI14 | 2-20, | with | SMT | Male / Female | 1 | Wire to Board Connectors Housing & Terminal | Download |
| 1.00 | 0.039 | CI16 | 2-20 | without | SMT | Male / Female | 1 | Wire to Board Connectors Housing & Terminal | Download |
| 1.20 | 0.048 | CI63 | 2-10 | without | SMT | Male / Female | 1 | Wire to Board Header | Download |
| 1.25 | 0.049 | CI40 | 02-15 | without | SMT | Male / Female | 1 | Wire to Board Housing & Terminal & SMT Header | Download |
| 1.25 | 0.049 | CI42 | 02-20 | with | SMT | Male / Female | 1 | Wire to Board Housing & Terminal | Download |
| 1.25 | 0.049 | CI43 | 02-15, 20, 25, 30 | without | SMT | Male / Female | 1 | Wire to Boars Housing & Terminal & SMT Header | Download |
| 1.25 | 0.049 | CI44 | 2-15 | without | DIP/SMT | Male / Female | 1 | Wire to Boars Connectors Housing & Terminal | Download |
| 1.25 | 0.049 | CI45 | 19 | with | SMT | Male / Female | 1 | Wire to Board Housing & SMT Headers | Download |
| 1.25 | 0.049 | CI46 | 2-20 | with | SMT | Male / Female | 1 | Wire to Board Connectors Housing & Terminal | Download |
| 1.25 | 0.049 | CIDL | 3 | with | Male / Female | 1 | Wire to Board Connectors | Download | |
| 1.25 | 0.049 | CIDM | 2-15 | without | Male | Download | |||
| 1.27 | 0.050 | CI94 | with | Female | Download | ||||
| 1.50 | 0.059 | CI15 | 2-15 | without | DIP/SMT | Male / Female | 1 | Wire to Board Connectors Housing & Terminal | Download |
| 1.50 | 0.059 | CI19 | 02-20 | without | SMT | Male / Female | Wire to Board Connectors Housing & Terminal | Download | |
| 1.50 | 0.059 | CI87 | 8, 10 | without | SMT | 1 | Wire to Board Housing & Terminal & SMT Header | Download | |
| 1.80 | 0.071 | CI07 | 2 | with | SMT | Male / Female | 1 | Wire to Board Connectors Housing & Terminal | Download |
| 2.00 | 0.079 | CI01 | 02-16 | with | DIP/SMT | Male / Female | 1 | Single Row Wire to Board IDC Housing & Terminal | Download |
| 2.00 | 0.079 | CI01 | 02-16 | with | DIP | Male / Female | 2 | Double Row Wire to Board Housing & Terminal | Download |
| 2.00 | 0.079 | CI02 | 02-20 | without | 1 | Board In Connectors | Download | ||
| 2.00 | 0.079 | CI03 | 1 | Download | |||||
| 2.00 | 0.079 | CI04 | 2 | Download | |||||
| 2.00 | 0.079 | CI08 | 03-17 | without | DIP/SMT | Male / Female | 1 | Wire to Board Connectors SMT & DIP Headers | Download |
| 2.00 | 0.079 | CI09 | 2-10 | with | DIP | Male / Female | 1 | Wire to Board Connectors Housing & Terminal | Download |
| 2.00 | 0.079 | CI06 | 02-16 | with | DIP/SMT | Male / Female | Wire to Board Connectors Housing & Terminal | Download | |
| 2.50 | 0.098 | CI21 | 02-15 | without | DIP | Male / Female | 1 | Wire to Board Connectors Housing & Terminal | Download |
| 2.50 | 0.098 | CI22 | 02-20 | without | DIP | Male / Female | 1 | Wire to Boars IDC Connectors Header | Download |
| 2.50 | 0.098 | CI23 | 02-12 | without | DIP | Male / Female | 1 | Wire to Board Connectors Housing & Terminal | Download |
| 2.50 | 0.098 | CI25 | 02-15 | without | DIP | Male / Female | 1 | Wire to Board Connectors Housing & Terminal | Download |
| 2.50 | 0.098 | CI26 | 02-16 | without | 1 | Board In Connectors | Download | ||
| 2.50 | 0.098 | CI27 | 02-16 | 1 | Board In Connectors | Download | |||
| 2.50 | 0.098 | CI30 | 2-20 | without | DIP | Male | Download | ||
| 2.50 | 0.098 | CI60 | 02-15 | with | DIP | Male / Female | 1 | Download | |
| 2.50 | 0.098 | CI91 | 3.6 | Female | Straight Wire Holder Connectors | Download | |||
| 2.50 | 0.098 | CIL4 | 2 | without | SMT | Wire to Board Connectors SMT Headers | Download | ||
| 2.54 | 0.100 | CI31 | 2-20 | with | DIP | Male / Female | Wire to Board Connectors Housing & Terminal | Download | |
| 2.54 | 0.100 | CI32 | 1-40 | without | Female | 1 | Wire to Board Connectors Housing & Terminal | Download | |
| 2.54 | 0.100 | CI33 | 2-18 | with | DIP | Male / Female | 1 | Single Row Wire to Board Connectors Housing | Download |
| 2.54 | 0.100 | CI33 | 4-60 | with | Female | 2 | Download | ||
| 2.54 | 0.100 | CI34 | 4-40 | without | Female | 2 | Dual Row Wire to Board Connectors Housing | Download | |
| 2.54 | 0.100 | CI35 | 4 | without | Male / Female | 1 | Wire to Board Connectors | Download | |
| 2.54 | 0.100 | CI83 | 2-36 | with | DIP | Male | 1 | Friction Lock Breakaway Headers | Download |
| 2.54 | 0.100 | CI88 | 2-28 | without | DIP | Male | 1 | Pin Headers | Download |
| 2.54 | 0.100 | CID2 | 2-24 | Female | IDC Type Connectors | Download | |||
| 2.54 | 0.100 | CID7 | 2-22 | with | DIP | Male / Female | 1 | Wire to Board Housing/Terminal/Straight Headers | Download |
| 3.96 | 0.156 | CI51 | 2-20 | without | DIP | Male / Female | 1 | Wire to Board Connectors Housing & Terminal | Download |
| 3.96 | 0.156 | CI52 | 2-13 | with | DIP | Male / Female | 1 | Wire to Board Connectors Housing & Terminal | Download |
| 3.96 | 0.156 | CI77 | 2-20 | without | DIP | Male | 1 | Breakaway Pin Headers | Download |
| 3.96 | 0.156 | CI82 | 2-24 | with | DIP | Male | 1 | Friction Lock Breakaway Headers | Download |
| 5.00 | 0.197 | CI78 | 2-20 | 1 | Breakaway Pin Headers | Download | |||
| 5.08 | 0.200 | CI55 | 2-10 | with | DIP | Male / Female | 1 | Wire to Board Connectors | Download |
| Pitch (mm) | Pitch (inch) | Series | Pins | Latch | SMD / THT | Male / Female | Rows | Remark | |
Tabs
Board to Board
| Pitch (mm) | Pitch (inch) | Series | Pins | SMD / THT | Male / Female | Rows | |
|---|---|---|---|---|---|---|---|
| 0.50 | 0.020 | CBRB | 010-080 | SMT | 2 | Download | |
| 0.50 | 0.020 | CBRB | SMT | 2 | Download | ||
| 0.50 | 0.020 | CBRC | SMT | 2 | Download | ||
| 0.50 | 0.020 | CBRC | 10-22 | SMT | 2 | Download | |
| 0.50 | 0.020 | CBRE | 10, 20, 30 | SMT | 2 | Download | |
| 0.50 | 0.020 | CBRE | SMT | 2 | Download | ||
| 0.50 | 0.020 | CBRE | SMT | 2 | Download | ||
| 0.80 | 0.032 | CBC3 | 06-39 | SMT | 2 | Download | |
| 0.80 | 0.031 | CBRD | SMT | 2 | Download | ||
| 0.80 | 0.031 | CBRD | 010-080 | SMT | 2 | Download | |
| 1.00 | 0.039 | CB03 | 06-100 | SMT | Female | 1 | Download |
| 1.00 | 0.039 | CB12 | 6-100 | SMT | Female | 2 | Download |
| 1.27 | 0.050 | CB01 | 4-50 | DIP / SMT | Female | 1 | Download |
| 1.27 | 0.050 | CB50 | 06-60 | SMT | Female | 2 | Download |
| 1.27 | 0.050 | CB51 | 6-100 | SMT | Female | 2 | Download |
| 1.27 | 0.050 | CBC1 | 10, 20, 30-60 | SMT | 2 | Download | |
| 1.27 | 0.050 | CBC1 | 06-60 | DIP | 2 | Download | |
| 2.00 | 0.079 | CB22 | 02-40 | DIP / SMT | Female | 1 | Download |
| 2.00 | 0.079 | CB71 | SMT | Female | 2 | Download | |
| 2.00 | 0.079 | CB74 | 04-80 | DIP / SMT | Female | 2 | Download |
| 2.00 | 0.079 | CB76 | 04-80 | SMT | Female | 2 | Download |
| 2.00 | 0.079 | CB78 | DIP | Female | 2 | Download | |
| 2.50 | 0.098 | CBWG | DIP | 2 | Download | ||
| 2.54 | 0.100 | CB33 | 02-40 | DIP | Female | 1 | Download |
| 2.54 | 0.100 | CB37 | 02-40 | DIP | Female | 1 | Download |
| 2.54 | 0.100 | CB39 | 02-40 | DIP | Female | 1 | Download |
| 2.54 | 0.100 | CB41 | 40-80 | SMT | Female | 2 | Download |
| 2.54 | 0.100 | CB72 | SMT | Female | 2 | Download | |
| 2.54 | 0.100 | CB82 | DIP | Female | 2 | Download | |
| 2.54 | 0.100 | CB83 | 04-80 | DIP | Female | 2 | Download |
| 2.54 | 0.100 | CB85 | 04-80 | DIP | Female | 2 | Download |
| 2.54 | 0.100 | CB87 | DIP | Female | 2 | Download | |
| 2.54 | 0.100 | CB91 | 04-50, 60, 64, 66, 80 | DIP | Female | 2 | Download |
| 2.54 | 0.100 | CB93 | DIP | Female | 1 | Download | |
| 2.54 | 0.100 | CB94 | 06-64 | DIP | Female | 2 | Download |
| 2.54 | 0.100 | CB96 | 06-80 | DIP | Female | 2 | Download |
| 2.54 | 0.100 | CB97 | 04-40 | DIP | Female | 2 | Download |
| Pitch (mm) | Pitch (inch) | Series | Pins | SMD / THT | Male / Female | Rows | |
| Pitch (mm) | Pitch (inch) | Series | Pins | Latch | SMD / THT | Remark | |
|---|---|---|---|---|---|---|---|
| 0.30 | 0.012 | CF30 | 11-45 | SMT | ZIF One-Touch FFC/FPC Connectors | Download | |
| 0.30 | 0.012 | CF38 | 13-71 | SMT | ZIF One-Touch FFC/FPC Connector | Download | |
| 0.30 | 0.012 | CF58 | 07-61 | SMT | ZIF FFC/FPC Connector | Download | |
| 0.50 | 0.020 | CF11 | 04-60 | SMT | Download | ||
| 0.50 | 0.020 | CF20 | 04-55 | SMT | ZIF FFC/FPC Connector | Download | |
| 0.50 | 0.020 | CF23 | 04-40 | SMT | ZIF FFC/FPC Connector | Download | |
| 0.50 | 0.020 | CF24 | 04-50 | Download | |||
| 0.50 | 0.020 | CF25 | 05-65 | DIP / SMT | ZIF One-Touch FFC/FPC Connectors | Download | |
| 0.50 | 0.039 | CF27 | 04-20 | Download | |||
| 0.50 | 0.039 | CF29 | 04-40 | SMT | ZIF One-Touch FFC/FPC Connectors | Download | |
| 0.50 | 0.020 | CF31 | 04-61 | SMT | ZIF One-Touch FFC/FPC Connectors | Download | |
| 0.50 | 0.020 | CF34 | 04-61 | SMT | ZIF One-Touch FFC/FPC Connectors | Download | |
| 0.50 | 0.020 | CF35 | 04-40 | with | SMT | Download | |
| 0.50 | 0.020 | CF41 | Download | ||||
| 0.50 | 0.020 | CF42 | 02-50 | with | SMT | ZIF Side Entry FFC/FPC Connectors | Download |
| 0.50 | 0.020 | CF50 | 04-61 | SMT | ZIF One-Touch FFC/FPC Connector | Download | |
| 0.50 | 0.020 | CF55 | 6, 8, 11, 12, 13, 14, 36, 40 | SMT | ZIF FFC/FPC Connector | Download | |
| 0.50 | 0.020 | CF56 | 56, 60, 80 | SMT | ZIF One-Touch FFC/FPC Connector | Download | |
| 0.50 | 0.020 | CF61 | 04-60 | SMT | ZIF One-Touch FFC/FPC Connector | Download | |
| 0.50 | 0.020 | CF69 | 40 | Download | |||
| 0.50 | 0.020 | CF71 | Download | ||||
| 0.80 | 0.032 | CF32 | 04-40 | Download | |||
| 0.80 | 0.032 | CF37 | 04-40 | Download | |||
| 1.00 | 0.039 | CF06 | 4-15 | Download | |||
| 1.00 | 0.039 | CF07 | 04-32 | Download | |||
| 1.00 | 0.039 | CF08 | 04-32 | Download | |||
| 1.00 | 0.039 | CF09 | 04-32 | Download | |||
| 1.00 | 0.039 | CF10 | 04-32 | Download | |||
| 1.00 | 0.039 | CF11 | 04-30 | SMT | Download | ||
| 1.00 | 0.039 | CF16 | 03-32 | Download | |||
| 1.00 | 0.039 | CF20 | 04-27 | SMT | ZIF FFC/FPC Connector | Download | |
| 1.00 | 0.039 | CF23 | 03-19 | SMT | ZIF FFC/FPC Connector | Download | |
| 1.00 | 0.039 | CF25 | 04-32 | DIP / SMT | ZIF One-Touch FFC/FPC Connectors | Download | |
| 1.00 | 0.039 | CF31 | 04-30 | SMT | ZIF One-Touch FFC/FPC Connectors | Download | |
| 1.00 | 0.039 | CF50 | 04-30 | SMT | ZIF One-Touch FFC/FPC Connector | Download | |
| 1.00 | 0.039 | CF65 | 04-35 | Download | |||
| 1.25 | 0.049 | CF01 | Download | ||||
| 1.25 | 0.049 | CF12 | 03-36 | Download | |||
| Pitch (mm) | Pitch (inch) | Series | Pins | Latch | SMD / THT | Remark | |
| Pitch (mm) | Pitch (inch) | Series | Pins | Latch | SMD / THT | Male / Female | Rows | |
|---|---|---|---|---|---|---|---|---|
| 0.80 | 0.032 | CHC3 | 06-36 | SMT | 2 | Download | ||
| 1.00 | 0.039 | CH07 | 02-40 | DIP / SMT | Male | 1 | Download | |
| 1.00 | 0.039 | CH16 | 6-100 | SMT | Male | 2 | Download | |
| 1.27 | 0.050 | CH01 | 04-50 | DIP / SMT | Male | 1 | Download | |
| 1.27 | 0.050 | CH02 | 04-50 | DIP / SMT | Male | 1 | Download | |
| 1.27 | 0.050 | CH03 | 04-50 | DIP / SMT | Male | 1 | Download | |
| 1.27 | 0.049 | CH06 | 6, 14, 26 | with | SMT | Male | 2 | Download |
| 1.27 | 0.050 | CH51 | 06-100 | DIP / SMT | Male | 2 | Download | |
| 1.27 | 0.050 | CH52 | 06-100 | DIP / SMT | Male | 2 | Download | |
| 1.27 | 0.050 | CH57 | 06-100 | DIP / SMT | Male | 2 | Download | |
| 1.27 | 0.050 | CHC2 | 06-100 | DIP / SMT | Male | 2 | Download | |
| 2.00 | 0.079 | CH11 | 02-40 | DIP / SMT | Male | 1 | Download | |
| 2.00 | 0.079 | CH21 | 02-40 | DIP / SMT | Male | 1 | Download | |
| 2.00 | 0.079 | CH70 | 04-80 | SMT | Male | 2 | Download | |
| 2.00 | 0.079 | CH71 | 04-80 | DIP / SMT | Male | 2 | Download | |
| 2.00 | 0.079 | CH72 | 08-50 | DIP | Male | 2 | Download | |
| 2.00 | 0.079 | CH74 | 06-68 | DIP / SMT | Male | 2 | Download | |
| 2.00 | 0.079 | CH75 | 04-80 | DIP / SMT | Male | 2 | Download | |
| 2.54 | 0.100 | CH31 | 01-40 | DIP / SMT | Male | 1 | Download | |
| 2.54 | 0.100 | CH34 | 02-40 | DIP / SMT | Male | 1 | Download | |
| 2.54 | 0.100 | CH81 | 04-80 | DIP / SMT | Male | 2 | Download | |
| 2.54 | 0.100 | CH85 | 04-80 | DIP / SMT | Male | 2 | Download | |
| 2.54 | 0.100 | CH87 | 06-64 | DIP / SMT | Male | 2 | Download | |
| 2.54 | 0.100 | CH88 | 10-64 | with | DIP | Male | 2 | Download |
| CHPT | Download | |||||||
| CHWG | Download | |||||||
| Pitch (m m) | Pitch (inch) | Series | Pins | Latch | SMD / THT | Male / Female | Rows | |
| Pitch (mm) | Pitch (inch) | Series | Pins | Latch | SMD / THT | Male / Female | Rows | |
|---|---|---|---|---|---|---|---|---|
| 1.50 | 0.059 | CP14 | 2-10 | without | SMT | 1 | Download | |
| 1.50 | 0.059 | CP15 | 2-10 | without | SMT | Male/Female | 1 | Download |
| 2.00 | 0.079 | CP27 | 2.4 | without | SMT | Female | Download | |
| 2.50 | 0.098 | CP06 | 2-12 | without | Male/Female | Download | ||
| 2.50 | 0.098 | CP25 | 3 | without | SMT | Female | 1 | Download |
| 3.00 | 0.118 | CP35 | 2-12 | with | DIP / SMT | Male/Female | 1 | Download |
| 3.00 | 0.118 | CP35 | 2-24 | with | DIP / SMT | Male/Female | 2 | Download |
| 3.50 | 0.138 | CP05 | 2 | with | DIP / SMT | Male/Female | Download | |
| 3.68 | 0.145 | CP02 | 01-15 | with | Male/Female | Download | ||
| 4.00 | 0.157 | CP04 | 02, 03, 04, 05 | with | DIP / SMT | Male/Female | Download | |
| 4.20 | 0.165 | CP-011 | 3-5 | with | Female | 1 | Download | |
| 4.20 | 0.165 | CP-012 | 2-24 | with | Female | 2 | Download | |
| 4.20 | 0.165 | CP-012 | 3-5 | with | Male | 1 | Download | |
| 4.20 | 0.165 | CP-012 | 2-24 | with | Male | 2 | Download | |
| 4.20 | 0.165 | CP-013 | 2-24 | DIP | Male | 1 | Download | |
| 4.20 | 0.165 | CP-013 | 2-24 | DIP | Male | 2 | Download | |
| 4.20 | 0.165 | CP-014 | 2-24 | DIP | Male | 1 | Download | |
| 4.20 | 0.165 | CP-014 | 2-24 | DIP | Male | 2 | Download | |
| 5.00 | 0.197 | CP50 | 2-12 | with | DIP | Male/Female | Download | |
| 5.08 | 0.200 | CP32 | 4 | without | Male/Female | 1 | Download | |
| 5.08 | 0.200 | CP33 | DIP | Male/Female | 1 | Download | ||
| 6.30 | 0.248 | CP31 | Male/Female | Download | ||||
| Pitch (mm) | Pitch (inch) | Series | Pins | Latch | SMD / THT | Male / Female | Rows | |
| Pitch (mm) | Pitch (inch) | Series | Pins | Latch | SMD / THT | Male / Female | |
|---|---|---|---|---|---|---|---|
| 1.27 | 0.050 | CA01 | 10-100 | IDC | Female | Download | |
| 1.27 | 0.050 | CA05 | 10-100 | IDC / DIP | Male | Download | |
| 1.27 | 0.050 | CA26 | 10-64 | IDC | Male | Download | |
| 1.27 | 0.050 | CA27 | 10-64 | IDC | Male | Download | |
| 1.27 | 0.050 | CA30 | 4-26 | IDC / DIP | Male | Download | |
| 1.27 | 0.050 | CA31 | 4-26 | IDC / DIP | Male | Download | |
| 1.27 | 0.050 | CA32 | 4-26 | with | DIP / SMT | Female | Download |
| 1.27 | 0.050 | CA33 | 4-26 | IDC | Female | Download | |
| 1.27 | 0.050 | CA34 | 4-26 | IDC / DIP | Male | Download | |
| 1.27 | 0.050 | CA35 | 4-26 | DIP / SMT | Male | Download | |
| 2.00 | 0.079 | CA11 | 6-64 | IDC | Female | Download | |
| 2.54 | 0.100 | CA21 | 6-64 | IDC | Female | Download | |
| 2.54 | 0.100 | CA23 | 6-64 | IDC / DIP | Male | Download | |
| Pitch (mm) | Pitch (inch) | Series | Pins | Latch | SMD / THT | Male / Female | |
| Pitch (mm) | Pitch (inch) | Series | Pins | SMD / THT | |
|---|---|---|---|---|---|
| 0.80 | 0.031 | CS60 | Download | ||
| 1.27 | 0.050 | CS21 | Download | ||
| 1.27 | 0.050 | CS22 | Download | ||
| 1.27 | 0.050 | CS61 | Download | ||
| 1.27 | 0.050 | CS62 | Download | ||
| 2.00 | 0.079 | CS01 | Download | ||
| 2.54 | 0.100 | CS02 | Download | ||
| 2.54 | 0.100 | CS05 | Download | ||
| 2.54 | 0.100 | CS07 | 6-48 | DIP | Download |
| 2.54 | 0.100 | CS08 | Download | ||
| 2.54 | 0.100 | CS09 | Download | ||
| 2.54 | 0.100 | CS10 | Download | ||
| 2.60 | 0.102 | CS30 | Download | ||
| CS59 | Download | ||||
| CS68 | Download | ||||
| CS69 | Download | ||||
| CS70 | Download | ||||
| CS76 | Download | ||||
| Pitch (mm) | Pitch (inch) | Series | Pins | SMD / THT | |
| Series | Pins | SMD / THT | Male / Female | |
|---|---|---|---|---|
| CD01 | 15, 26, 44, 62 | Solder Cup | Male / Female | Download |
| CD02 | Crimp | Male / Female | Download | |
| CD03 | 15, 26, 44, 62 | DIP | Male / Female | Download |
| CD04 | DIP | Male / Female | Download | |
| CD05 | 15, 26, 44 | DIP | Male / Female | Download |
| CD42 | Plastic Hood | Download | ||
| CD43 | Plastic Hood | Download | ||
| CD44 | Plastic Hood | Download | ||
| CD46 | Plastic Hood | Download | ||
| CD51 | 09, 15, 25, 37 | Solder Cup | Male / Female | Download |
| CD52 | 09, 15, 25, 37 | Crimp | Male / Female | Download |
| CD53 | 09, 15, 25, 37 | DIP | Male / Female | Download |
| CD54 | DIP | Male / Female | Download | |
| CD61 | 09, 15, 25, 37 | DIP | Male / Female | Download |
| CD62 | 09, 15, 25, 37 | DIP | Male / Female | Download |
| CD67 | DIP | Male / Female | Download | |
| CD71 | 09, 15, 25, 37, 50 | Solder Cup | Male / Female | Download |
| CD72 | 09, 15, 25, 37, 50 | DIP | Male / Female | Download |
| CD73 | 09, 15, 25, 37 | DIP | Male / Female | Download |
| CD76 | DIP | Male / Female | Download | |
| CD81 | Stacked | Male / Female | Download | |
| CD91 | 09, 15, 25, 37 | IDC HOUSING | Male / Female | Download |
| Series | Pins | SMD / THT | Male / Female | |
| Series | SMD / THT | Male / Female | Rows | Remark | |
|---|---|---|---|---|---|
| CU01 | SMT | Male / Female | Standard / Dual Type | USB 2.0 Type-A | Download |
| CU02 | SMT / DIP | Female | USB 2.0 Type-B | Download | |
| CU04 | SMT / DIP | Female | Mini USB 2.0 | Download | |
| CU05 | Download | ||||
| CU07 | Download | ||||
| CU09 | SMT | Female | Micro USB 2.0 | Download | |
| Series | SMD / THT | Male / Female | Rows | Remark | |
| Type | |
Contact Side | Shell Side | Mounting | CviLux Article Number |
|---|---|---|---|---|---|
| USB-C 24 Pin, DIP | Download | — |
DIP |
middle mount right angle |
CU1824PAM1N12-LF-HC |
| USB-C 24 Pin, SMT | Download | — |
SMT |
middle mount right angle |
CU1824PAM1N13-LF-HC |
| USB-C 24 Pin, PCB Clip Type | Download | PCB Clip Type |
— |
— |
CU1824PAC1N10-LF-HC |
| Typ | |
Contact Side | Shell Side | Mounting | CviLux Article Number |
|---|---|---|---|---|---|
| USB-C 24 Pin, DIP+SMT (double Shell) | Download | SMT | DIP + SMT (double Shell) |
middle mount right angle |
CU1824SAM1MP2RO-LF-HC |
| USB-C 24 Pin. DIP (single Shell) | Download | SMT | DIP (single Shell) |
middle mount right angle |
CU1824SAM1MD2R1-LF-HC |
| USB-C 24 Pin, DIP (double Shell) | Download | SMT | DIP (double Shell) |
middle mount right angle |
CU1824SAM1MD2RO-LF-HC |
| USB-C 24 Pin, DIP (single Shell) | Download | SMT + DIP | DIP (single Shell) |
top mount right angle |
CU1824SAH1PD2R1-LF-HC |
| USB-C 24 Pin, DIP | Download | SMT | DIP |
top mount right angle |
CU1824SAV1MD2RO-LF |
| USB-C 24 Pin, SMT (single Shell) | Download | SMT | SMT (single Shell) |
P.C.B. Clip Type |
CU1824SAC1MM2RO-LF-HC |
| USB-C 24 Pin, DIP (single Shell) | Download | SMT | DIP (single Shell) |
top mount right angle |
CU1824SAH1MD2RO-LF-HC |
| USB-C 24 Pin, DIP (double Shell) | Download | SMT + DIP | DIP (double Shell) |
top mount right angle |
CU1824SAH1PD2R0-LF-HC |
| USB-C 16 Pin, DIP (single Shell) | Download | SMT | DIP (single Shell) |
top mount right angle |
CU1816SAH1MD2RO-LF-HC |
| Type | Speed | Current | UL Cable | Lenght |
|---|---|---|---|---|
| USB 2.0 C to Micro B | 480 Mbps |
3 A |
80°C, 30 V |
< 2 Meter |
| USB 2.0 C to BM | 480 Mbps |
3 A |
80°C, 30 V |
< 4 Meter |
| USB 2.0 AM to C | 480 Mbps |
3 A |
80°C, 30 V |
< 4 Meter |
| USB 3.1 C to 3.0 Micro B | 10 Gbps |
3 A |
80°C, 30 V |
< 1 Meter |
| USB 3.1 C to 3.0 B | 10 Gbps |
3 A |
80°C, 30 V |
< 1 Meter |
| USB 2.0 C to Mini B | 480 Mbps |
3 A |
80°C, 30 V |
< 4 Meter |
| USB 3.1 C to A/F | 5 Gbps |
3 A |
80°C, 30 V |
< 0,15 Meter |
| USB 3.1 C to C | 10 Gbps |
3 A und 5 A |
80°C, 30 V |
< 2 Meter |
